Y-Pattern Piston Check Valve, Forged Steel, Threaded, Socket weld

Forged Steel Piston Check Valves, Welded

Materials

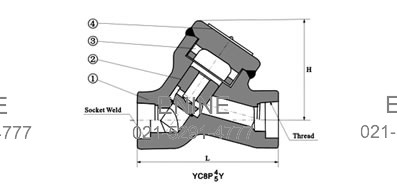

Materials of Forged Steel Piston Check Valves
NO. Part Name CS to ASTM AS to ASTM SS to ASTM
Type A105 Type F22 Type F304(L) Type F316(L)
1 Body A105 A182 F22 A182 F304(L) A182 F316(L)
2 Piston Disc A276 420 A276 304 A276 304(L) A276 316(L)
3 Bonnet A105 A182 F22 A182 F304(L) A182 F316(L)
4 Nameplate SS
Suitable Medium W.O.G. etc W.O.G. etc HNO3,CH3OOH etc
Suitable Temperature -29°C~425°C -29°C~550°C -29°C~180°C

Class 800 Lb: Bolted Cover-Threaded and Socket weld Ends-Dimensions (mm) and Weights (kg)

NPS Reduced 3/8 1/2 3/4 1 1-1/4 1-1/2 2
Full   3/8 1/2 3/4 1 1-1/4 1-1/2 2
L 98 98 110 120 140 140 170 200
H(OPEN) 85 85 95 105 114 114 132 145
Weights 3.1 3.0 3.7 6.5 8.5 8.0 10.9 12.5
